Concertina v0.6.0 pin headers on MCU

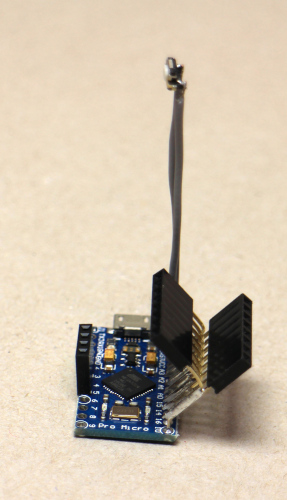

An example of how to prep an MCU board, in this case a Pro Micro, with a few headers and a tiny reset button on stalks.
The headers allow you to disassemble the keyboard without soldering, which is handy for repairs and upgrades.
